2U + 4U MiniRaQ Convertible – Tall (Backplate only, no Side Panels)

Item No. MRQ301V06

PRICE: $369.00 USD

Description

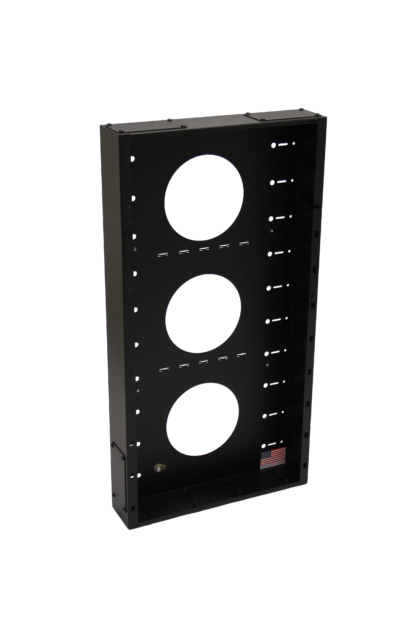

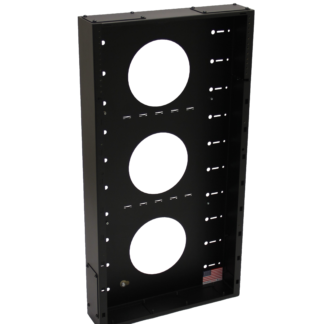

The 6U MiniRaQ Convertible Tall is a wallmount rack that includes a 4.5″ deep backplate only. A set of 2U rails internal to the backplate are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. This open rack extends only 4.5″ from the wall and can accommodate rackmount equipment with a depth/length of 29″. The upper section of the backplate features a 4U space dedicated for installation of up to 96 ports of patch panel hardware. Three pairs of removal access plates on the top, bottom, and lower sides of the backplate can be used for routing of large data cable bundles or routing of power cables. These rectangular plates can also be replaced with many of our MiniRaQ options further increasing the capabilities of the MiniRaQ. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. The 6U Convertible Tall model can be upgraded in the field to any SECURE Tall model. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site.

Additional information

Weight 31 lbs
Dimensions 40 × 23 × 9 in

Specifications

Configuration MiniRaQ Convertible Tall
Total Rack Units Available 6U
Rack Units for Equipment Mounted Vertically NA
Rack Units for Patch Panel at Top of Backplate 4U
Bonus Rack Units Internal to Backplate 2U
Bonus Rack Units External to Backplate NA
Backplate Depth 4.5″
Max Height 38.1″
Max Width 19.6″
Max Depth 4.5″
Shipping Weight Box1/Box2 31 lbs.
Shipping Dimensions Box1/Box2 40″(H) x 23″(W) x 9″(D)
Upgradeable to Secure Model Yes
Made in the USA Yes
Max Equipment Depth without Standoffs N/A
Max Equipment Depth with Standoffs N/A
Cooling Fan Tray N/A
Integrated Grounding Stud Yes
Integrated Cable Mgmt (Back Plate) Yes
Color Black



Features

Revolutionary space-saving design – Deploy up to 16U of equipment.
Optimized for today’s deep rackmount components.
Equipment is installed vertically to allow placement in small previously unusable spaces.
Dedicated patch panel space with up to 4U at top of backplate.

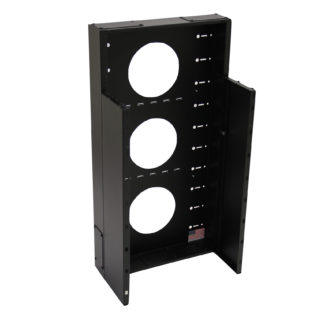

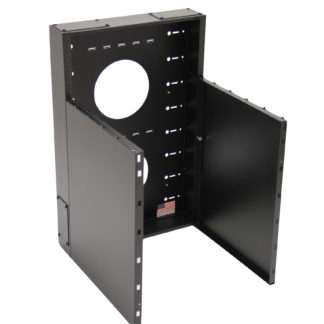

Available with field upgradeable 4U, 6U, 8U or 10U side panels.
Designed to hold up to 400 Ibs. of equipment without additional bracing.
Rapidly mounts to wall studs, backboard or concrete block.
Installation is easily performed by a single technician.
Integrated bridge lances for easy and efficient cable management.
Large cable access holes on top, bottom & sides of backplate.
Integrated earth grounding stud.
Constructed from heavy-duty 14AWG steel.
Convertible models are field upgradeable to fully enclosed & locking MiniRaQ Secure.

Documentation

Assembly Drawing

Title Type Size
-0MB

Install Guide

Title Type Size
90-086 Rev1 MRQ3XXV06 Install Guide pdf 0.2MB

US Patent No. - US 8,152,000 B2
