4U + 2U Standard MiniRaQ

Sturdy, low-cost, low-profile, open frame wallmount rack. Patents Pending.

Item No. MRQ100V06

PRICE: $239.00 USD

Description

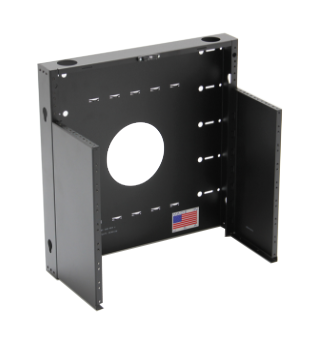

The 6U MiniRaQ Standard includes a 2.5″ deep backplate and (2) 4U side panels. The upper section of the backplate features a 2U space dedicated for installation of up to 48 ports of patch panel hardware. The 4U side panels are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. This open rack extends only 9.8″ from the wall and can accommodate rackmount equipment with any depth/length. Two circular holes on the top of the backplate can be used for data cable routing, power cable routing or conduit routing. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site.

Additional information

Weight 18 lbs
Dimensions 20 × 20 × 3 in

Specifications

Configuration MiniRaq Standard
Total Rack Units Avilable 6U
Rack Units for Equipment Mounted Vertically 4U
Rack Units for Patch Panel at Top of Backplate 2U
Bonus Rack Units Internal to Backplate NA
Bonus Rack Units External to Backplate 2U
Backplate Depth 2.5″
Max Height 19.25″
Max Width 19″
Max Depth 9.75″
Shipping Weight Box1/Box2 18 lbs.
Shipping Dimensions Box1/Box2 20″x20″x3″
Upgradeable to Secure Model No
Made in the USA Yes
Max Equipment Depth without Standoffs N/A
Max Equipment Depth with Standoffs N/A
Cooling Fan Tray N/A
Integrated Grounding Stud Yes
Integrated Cable Mgmt (Back Plate) Yes
Color Black

Features

Revolutionary space-saving design – Deploy up to 16U of equipment.
Optimized for today’s deep rackmount components.
Equipment is installed vertically to allow placement in small previously unusable spaces.
Dedicated patch panel space with up to 4U at top of backplate.
Available with field upgradeable 4U, 6U, 8U or 10U side panels.
Designed to hold up to 400 Ibs. of equipment without additional bracing.
Rapidly mounts to wall studs, backboard or concrete block.
Installation is easily performed by a single technician.
Integrated bridge lances for easy and efficient cable management.
Large cable access holes on top, bottom & sides of backplate.
Integrated earth grounding stud.
Constructed from heavy-duty 14AWG steel.
Convertible models are field upgradeable to fully enclosed & locking MiniRaQ Secure.

Documentation

Assembly Drawing

Title Type Size
90-053 R1.1 - MRQ100V06 Assembly Drawing pdf 0.1MB

Install Guide

Title Type Size
90-012 Rev1 MRQ100VXX Install Guide pdf 1.1MB

US Patent No. - US 8,152,000 B2
