6U MiniRaQ Secure – Tall (No Side Panels)

PRICE: $589.00 USD

Description

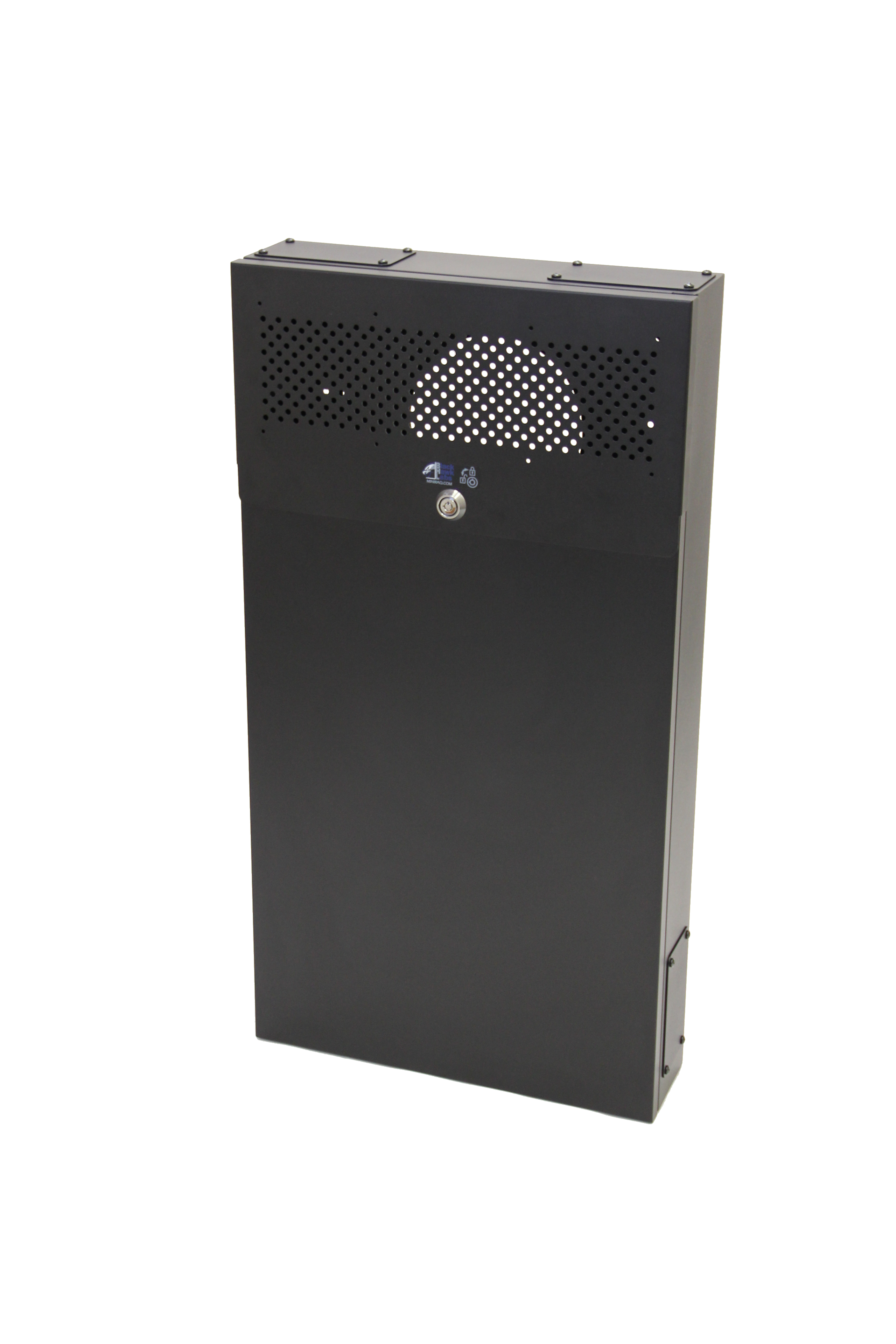

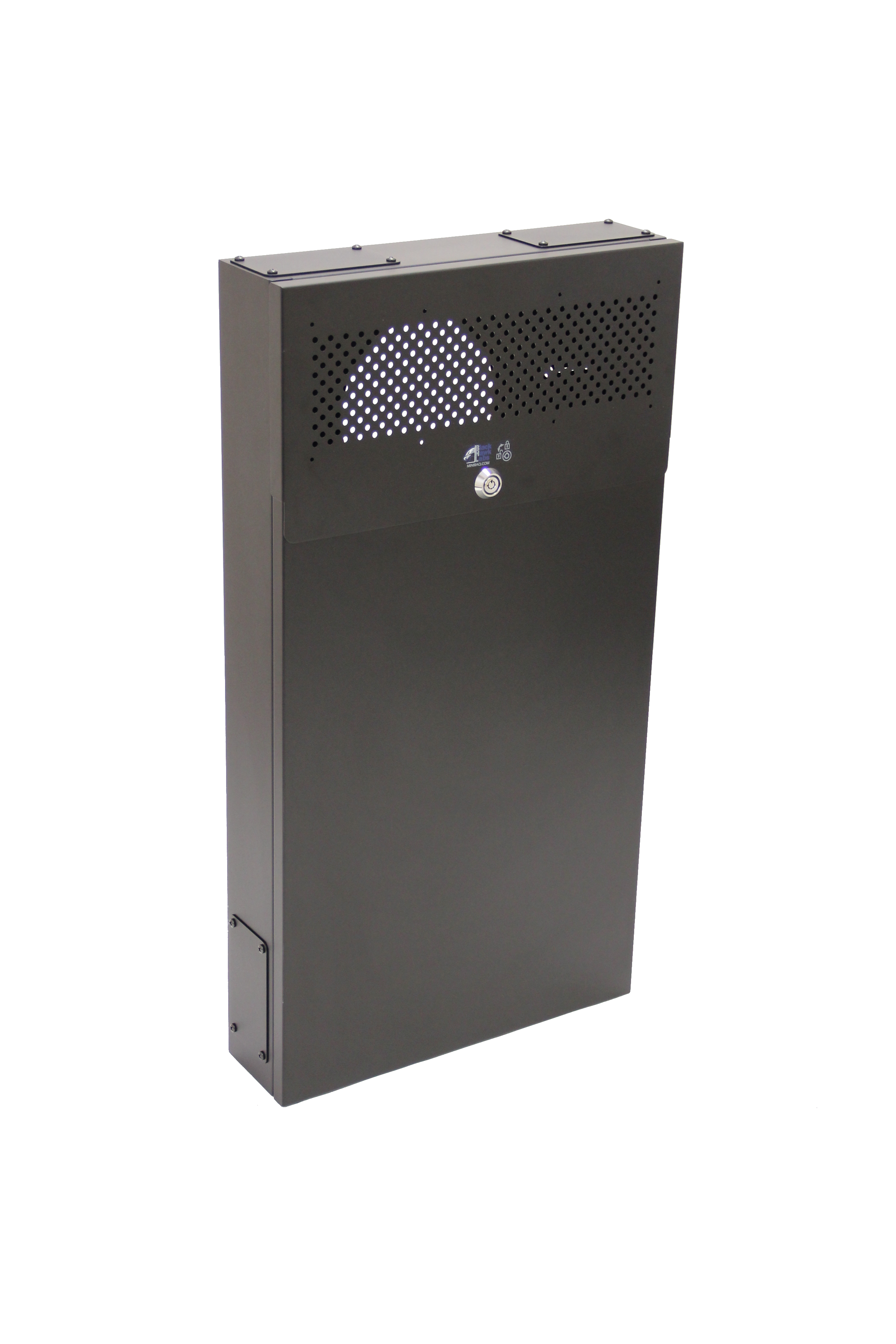

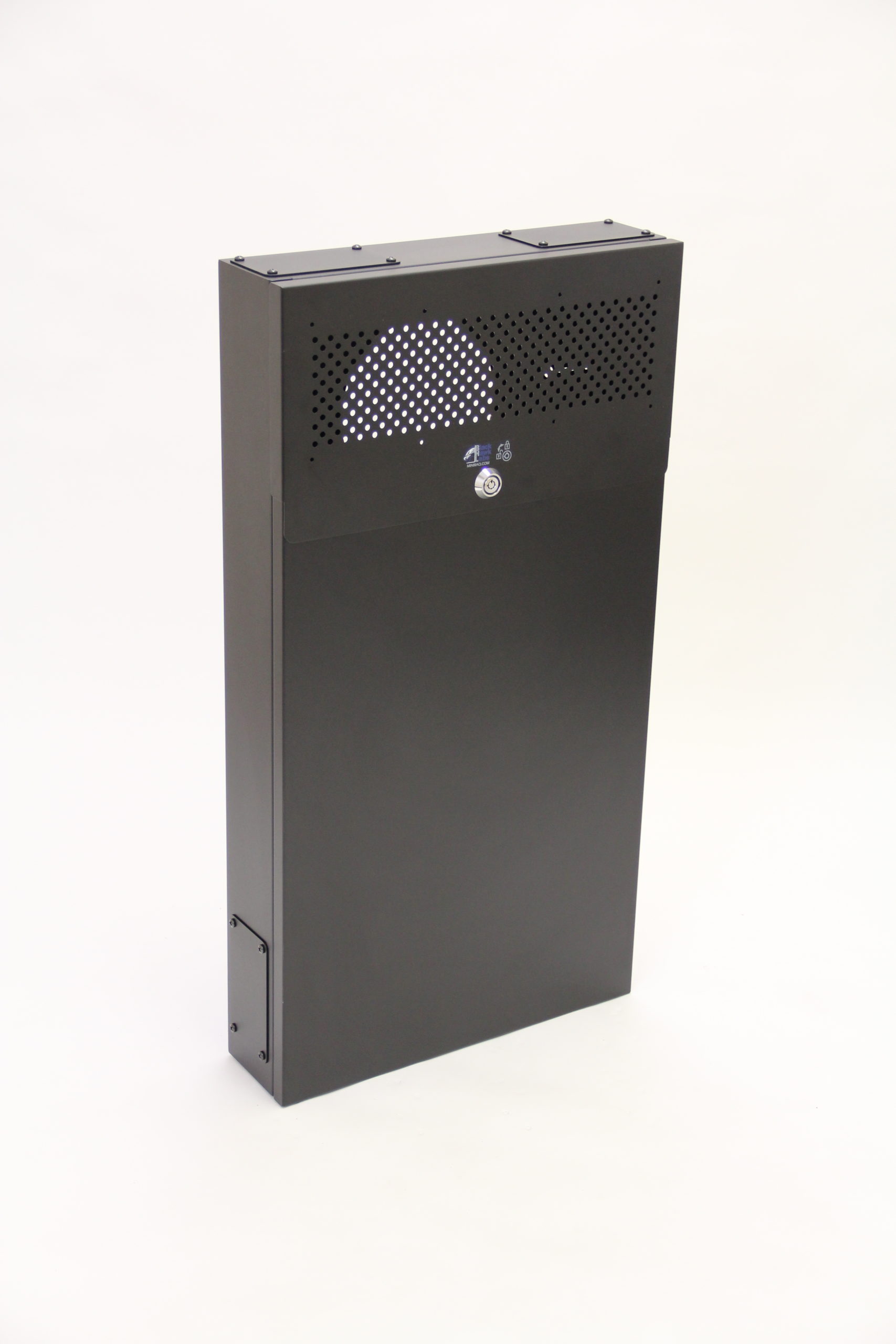

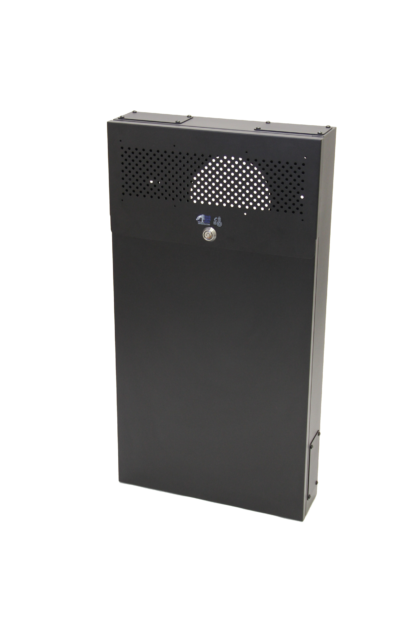

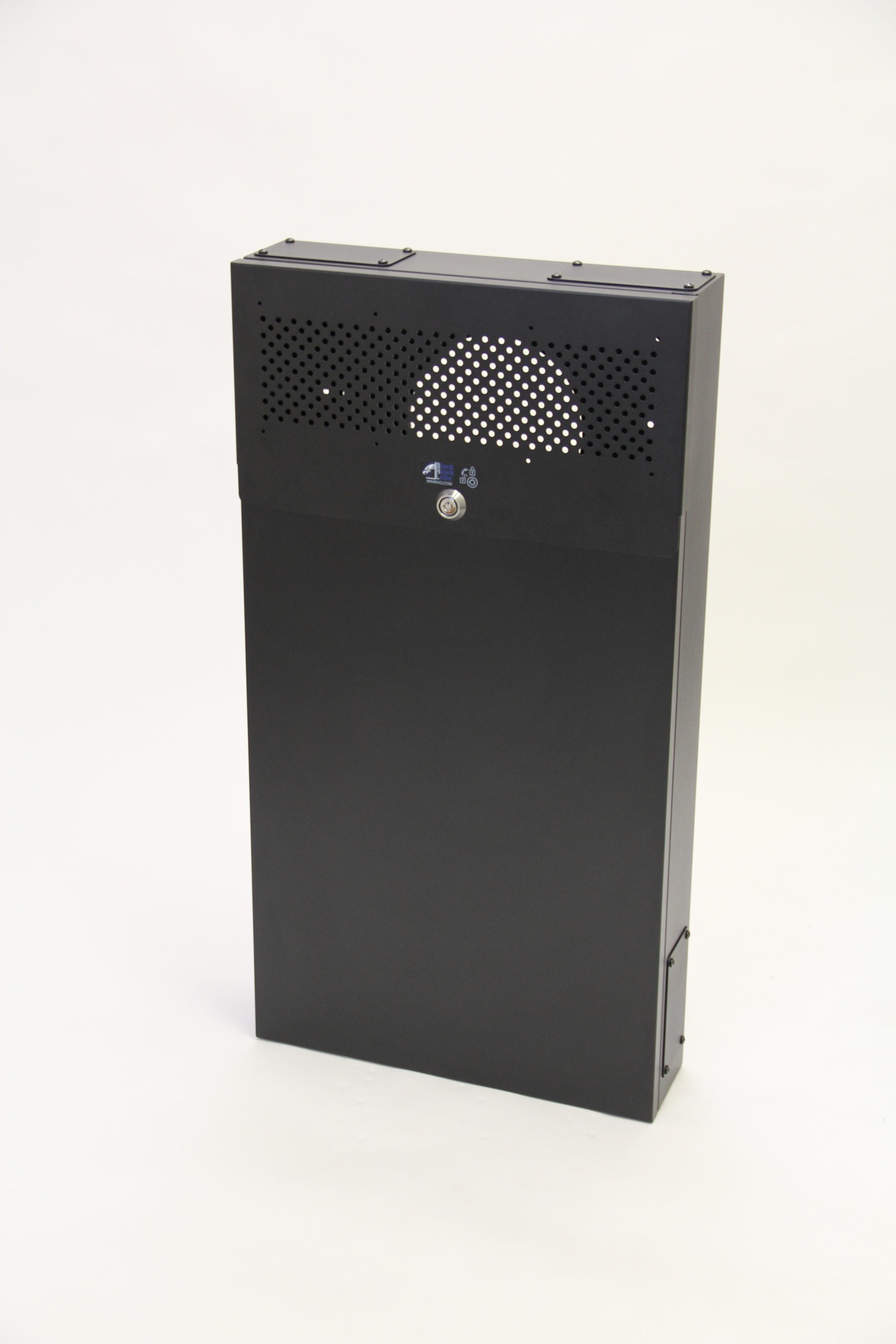

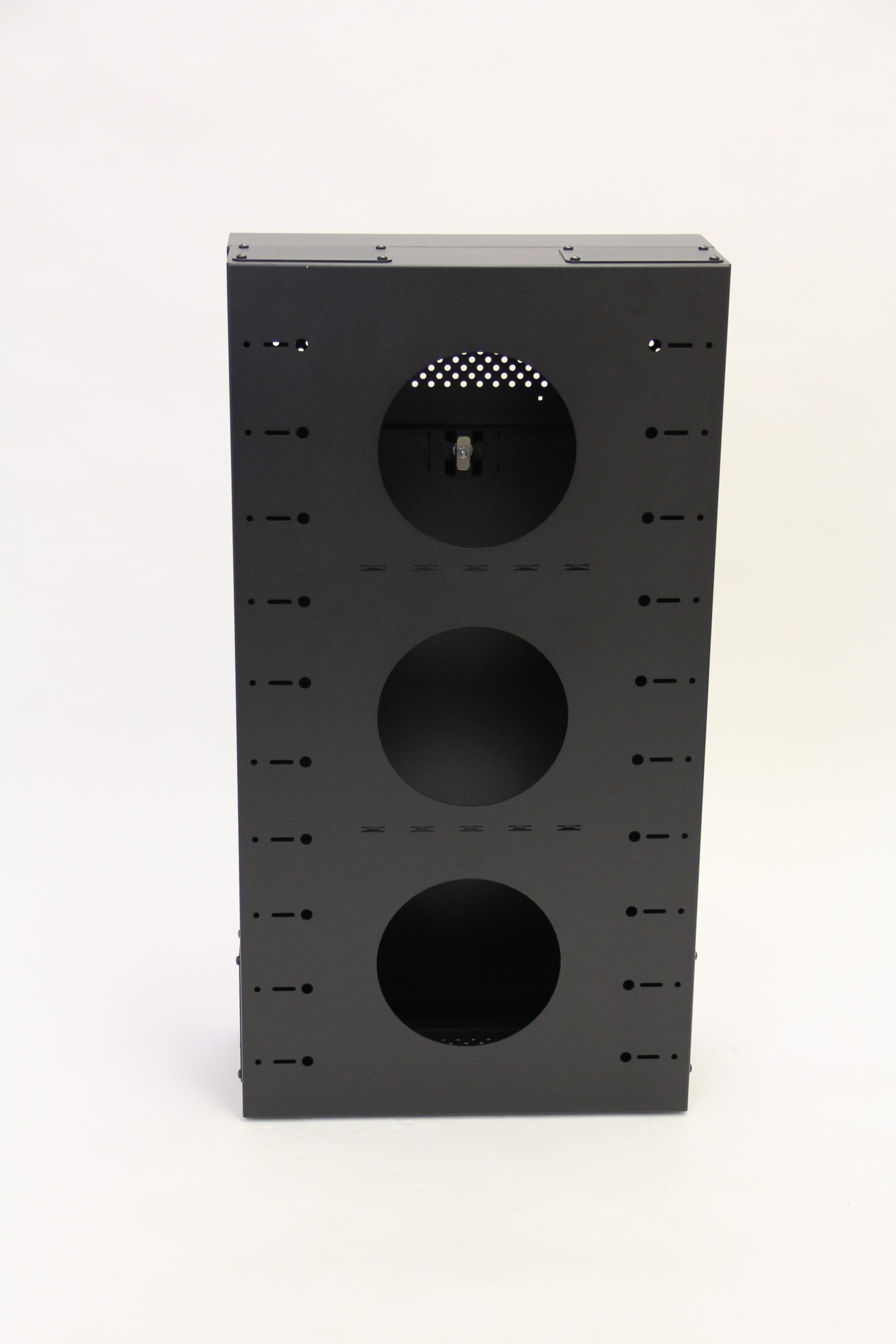

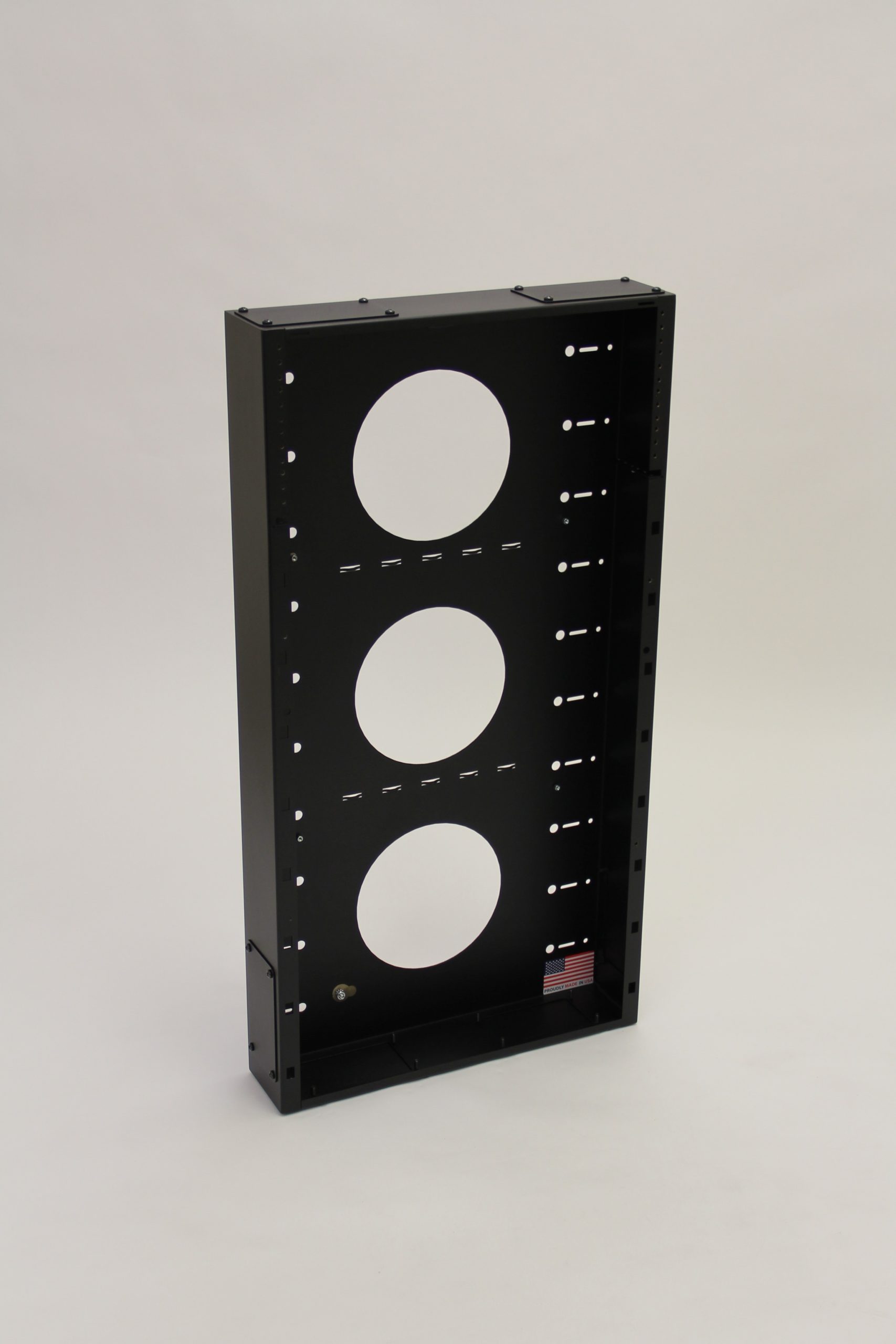

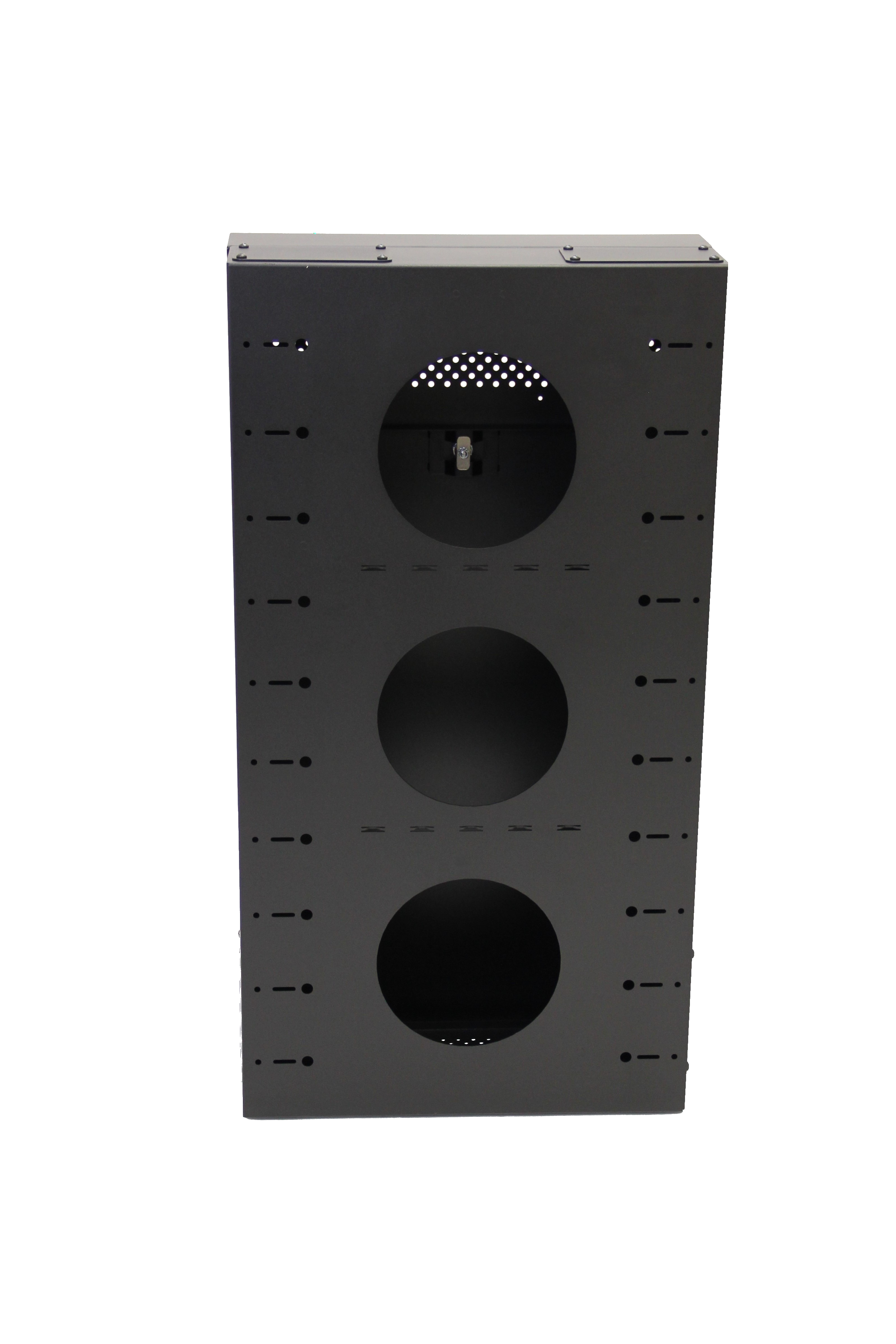

The 6U MiniRaQ SECURE Tall is a fully secure wallmount enclosure that extends only 5.5″ from the wall and can accommodate rackmount equipment with a maximum depth/length of 35″. The backplate is capable of holding over 400 lbs. of equipment mounted in a vertical orientation. The upper section of the backplate features a 4U space dedicated for installation of up to 96 ports of patch panel. Internal to the backplate is set of 2U rails that can be used for installation of equipment in a vertical orientation. Three pairs of removal access plates on the top, bottom, and lower sides of the backplate can be used for routing of large data cable bundles or routing of power cables. These rectangular plates can also be replaced with many of our MiniRaQ options further increasing the capabilities of the MiniRaQ. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site. The MRQ301S06 includes a 4.5″ deep backplate, front panel, locking lid & vented bottom. GoVertical with MiniRaQ!

Additional information

Weight 48 lbs
Dimensions 40 × 23 × 9 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specifications

Configuration MiniRaq Secure Tall
Total Rack Units Available 6U
Rack Units for Patch Panel at Top of Backplate 4U
Bonus Rack Units Internal to Backplate 2U
Bonus Rack Units External to Backplate NA
Backplate Depth 4.5″
Max Height 38.1″
Max Width 19.6″
Max Depth 5.5″
Shipping Weight Box1/Box2 48 lbs.
Shipping Dimensions Box1/Box2 40″(H) x 23″(W) x 9″(D)
Upgradeable to Secure Model Yes
Made in the USA Yes
Max Equipment Depth without Standoffs 29″
Max Equipment Depth with Standoffs 35″
Cooling Fan Tray Optional
Integrated Grounding Stud Yes
Integrated Cable Mgmt (Back Plate) Yes
Color Black

Features

Documentation

Assembly Drawing

Title Type Size
-0MB

Install Guide

Title Type Size
-0MB

US Patent No. - US 8,152,000 B2
