Additional information
| Weight | 24 lbs |
|---|---|
| Dimensions | 20 × 20 × 3 in |
MRQ100V12
10U + 2U Standard MiniRaQ
PRICE: $339.00 USD
Description

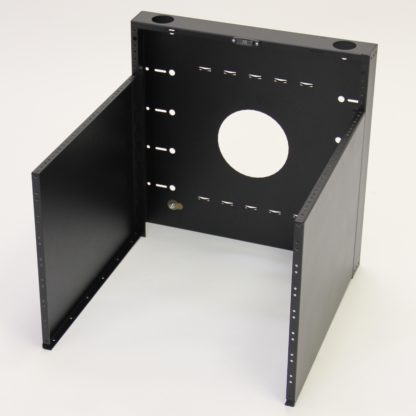

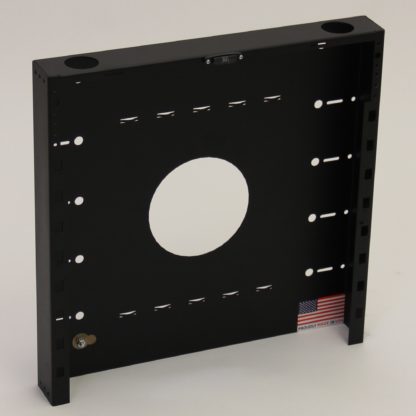

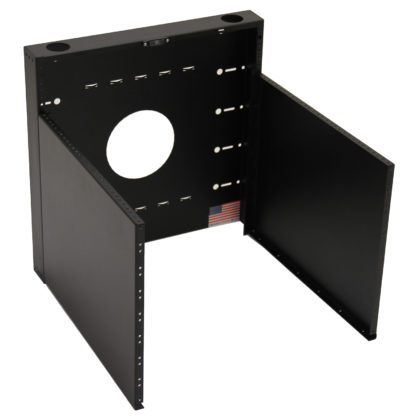

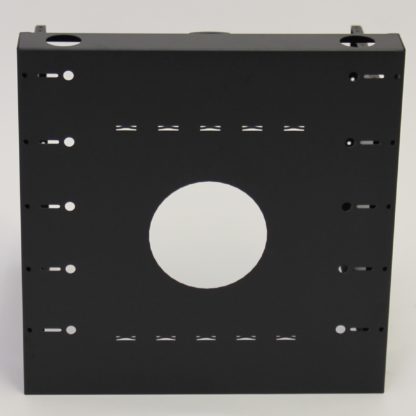

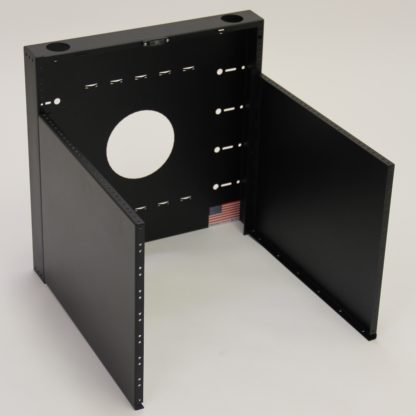

The 12U MiniRaQ Standard includes a 2.5″ deep backplate and (2) 10U side panels. The upper section of the backplate features a 2U space dedicated for installation of up to 48 ports of patch panel hardware. The 10U side panels are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. This open rack extends only 20.3″ from the wall and can accommodate rackmount equipment with any depth/length. Two circular holes on the top of the backplate can be used for data cable routing, power cable routing or conduit routing. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery sit
Specifications
| Configuration | MiniRaq Standard |
| Total Rack Units Avilable | 12U |
| Rack Units for Equipment Mounted Vertically | 10U |
| Rack Units for Patch Panel at Top of Backplate | 2U |
| Bonus Rack Units Internal to Backplate | NA |
| Bonus Rack Units External to Backplate | 2U |
| Backplate Depth | 2.5″ |
| Max Height | 19.25″ |
| Max Width | 19″ |
| Max Depth | 20.25″ |
| Shipping Weight Box1/Box2 | 24 lbs. |
| Shipping Dimensions Box1/Box2 | 20″x20″x3″ |
| Upgradeable to Secure Model | No |
| Made in the USA | Yes |
| Max Equipment Depth without Standoffs | N/A |
| Max Equipment Depth with Standoffs | N/A |
| Cooling Fan Tray | N/A |
| Integrated Grounding Stud | Yes |
| Integrated Cable Mgmt (Back Plate) | Yes |
| Color | Black |
Features
| Revolutionary space-saving design – Deploy up to 16U of equipment. |
| Optimized for today’s deep rackmount components. |
| Equipment is installed vertically to allow placement in small previously unusable spaces. |
| Dedicated patch panel space with up to 4U at top of backplate. |
| Available with field upgradeable 4U, 6U, 8U or 10U side panels. |
| Designed to hold up to 400 Ibs. of equipment without additional bracing. |
| Rapidly mounts to wall studs, backboard or concrete block. |
| Installation is easily performed by a single technician. |
| Integrated bridge lances for easy and efficient cable management. |
| Large cable access holes on top, bottom & sides of backplate. |
| Integrated earth grounding stud. |
| Constructed from heavy-duty 14AWG steel. |
| Convertible models are field upgradeable to fully enclosed & locking MiniRaQ Secure. |
Documentation
Assembly Drawing
| Title | Type | Size |
|---|---|---|
| 90-056 R1.1 - MRQ100V12 Assembly Drawing | -0MB |
Install Guide
| Title | Type | Size |
|---|---|---|
| 90-012 Rev1 MRQ100VXX Install Guide | -0MB |
US Patent No. - US 8,152,000 B2
