8U + 2U Standard MiniRaQ

PRICE: $319.00 USD


Item No. MRQ100V10

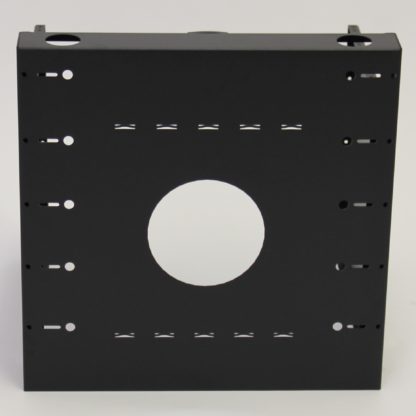

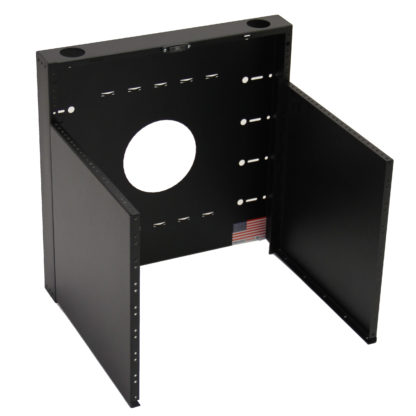

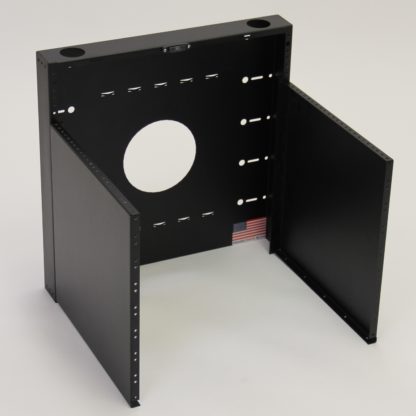

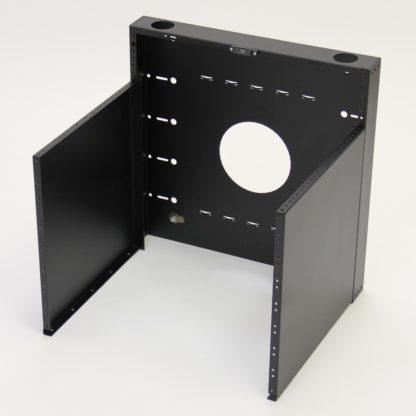

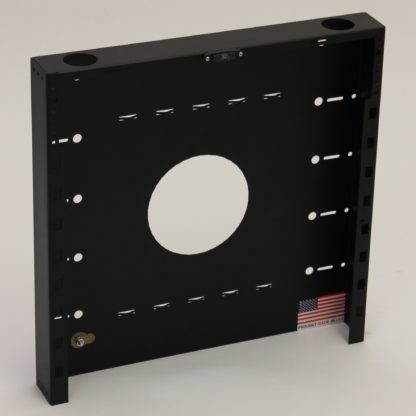

The 10U MiniRaQ Standard includes a 2.5″ deep backplate and (2) 8U side panels. The upper section of the backplate features a 2U space dedicated for installation of up to 48 ports of patch panel hardware. The 8U side panels are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. This open rack extends only 16.8″ from the wall and can accommodate rackmount equipment with any depth/length. Two circular holes on the top of the backplate can be used for data cable routing, power cable routing or conduit routing. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site.

Additional information

Weight 22 lbs
Dimensions 20 × 20 × 3 in


Configuration MiniRaq Standard
Total Rack Units Avilable 10U
Rack Units for Equipment Mounted Vertically 8U
Rack Units for Patch Panel at Top of Backplate 2U
Bonus Rack Units Internal to Backplate NA
Bonus Rack Units External to Backplate 2U
Backplate Depth 2.5″
Max Height 19.25″
Max Width 19″
Max Depth 16.75″
Shipping Weight Box1/Box2 22 lbs.
Shipping Dimensions Box1/Box2 20″x20″x3″
Upgradeable to Secure Model No
Made in the USA Yes
Max Equipment Depth without Standoffs N/A
Max Equipment Depth with Standoffs N/A
Cooling Fan Tray N/A
Integrated Grounding Stud Yes
Integrated Cable Mgmt (Back Plate) Yes
Color Black


Revolutionary space-saving design – Deploy up to 16U of equipment.
Optimized for today’s deep rackmount components.
Equipment is installed vertically to allow placement in small previously unusable spaces.
Dedicated patch panel space with up to 4U at top of backplate.
Available with field upgradeable 4U, 6U, 8U or 10U side panels.
Designed to hold up to 400 Ibs. of equipment without additional bracing.
Rapidly mounts to wall studs, backboard or concrete block.
Installation is easily performed by a single technician.
Integrated bridge lances for easy and efficient cable management.
Large cable access holes on top, bottom & sides of backplate.
Integrated earth grounding stud.
Constructed from heavy-duty 14AWG steel.
Convertible models are field upgradeable to fully enclosed & locking MiniRaQ Secure.


Assembly Drawing

Title Type Size
90-055 R1.1 - MRQ100V10 Assembly Drawing pdf -0MB

Install Guide

Title Type Size
90-012 Rev1 MRQ100VXX Install Guide pdf -0MB

US Patent No. - US 8,152,000 B2
